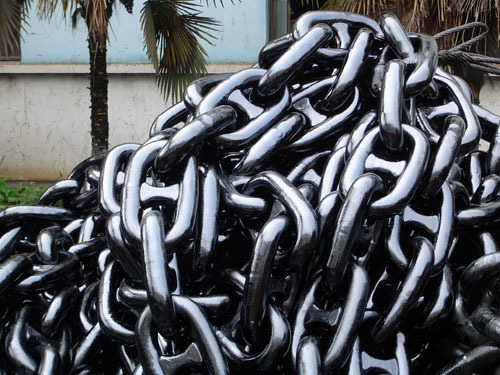

Mooring chain:
(files mooring chain/no files mooring chain)
1. The specification: ф64-ф127mm
2. Levels: R3, R3S, R4

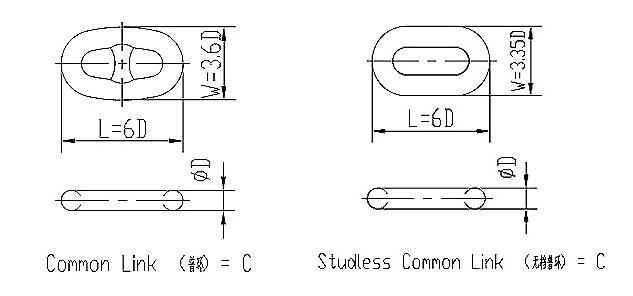

A file mooring chain ordinary rings No files mooring chain ordinary rings
3. Tension load, breakage load and weight
| ABS, DNV Mooring Chain Metric Load Table (chain diameter unit: mm; load unit: kN) | ||||||||
|
Chain diameter
|
R3
|
R3s
|
R4
|
|||||
|
With and without pull
|
Breaking load
|
No pull
|
With tension
|
Breaking load
|
No pull
|
With tension
|
Breaking load
|
|
|
64
|
2485
|
3552
|
2771
|
2867
|
3966
|
3058
|
3440
|
4364
|
|
66
|
2632
|
3762
|
2935
|
3036
|
4200
|
3239
|
3644
|
4622
|
|
68
|
2782
|
3977
|
3103
|
3210
|
4440
|
3424
|
3852
|
4886
|
|
70
|
2936
|
4196
|
3274
|
3387
|
4686
|
3613
|
4065
|
5156
|
|
73
|
3173
|
4535
|
3539
|
3661
|
5064
|
3905
|
4393
|
5572
|
|
76
|
3417
|
4885
|
3812
|
3943
|
5454
|
4206
|
4731
|
6002
|
|
78
|
3584
|
5124
|
3998
|
4136
|
5721
|
4411
|
4963
|
6295
|
|
81
|
3841
|
5490
|
4284
|
4432
|
6130
|
4727
|
5318
|
6746
|
|
84
|
4104
|
5866
|
4578
|
4735
|
6550
|
5051
|
5682
|
7208
|
|
87
|
4374
|
6252
|
4879
|
5047
|
6981
|
5383
|
6056
|
7682
|
|
90
|
4651
|
6648
|
5187
|
5366
|
7423
|
5724
|
6439
|
8168
|
|
92
|
4838
|
6916
|
5397
|
5583
|
7723
|
5955
|
6699
|
8498
|
|
95
|
5125
|
7326
|
5717
|
5914
|
8180
|
6308
|
7096
|
9002
|
|
97
|
5320
|
7604
|
5934
|
6138
|
8491
|
6547
|
7366
|
9343
|
|
100
|
5616
|
8028
|
6264
|
6480
|
8964
|
6912
|
7776
|
9864
|
|
102
|
5817
|
8316
|
6489
|
6712
|
9285
|
7160
|
8055
|
10217
|
|
105
|
6123
|
8753
|
6830
|
7065
|
9774
|
7536
|
8478
|
10755
|
|
107
|
6330
|
9049
|
7061
|
7304
|
10104
|
7791
|
8765
|
11118
|
|
111
|
6751
|
9650
|
7530
|
7789
|
10775
|
8309
|
9347
|
11857
|
|
114
|
7072
|
10109
|
7888
|
8160
|
11288
|
8704
|
9792
|
12421
|
|
117
|
7398
|
10575
|
8251
|
8536
|
11808
|
9105
|
10243
|
12993
|
|
120
|
7728
|
11047
|
8620
|
8917
|
12335
|
9511
|
10700
|
13573
|
|
122
|
7951
|
11365
|
8868
|
9174
|
12690
|
9785
|
11008
|
13964
|
|
124
|
8175
|
11686
|
9118
|
9433
|
13048
|
10062
|
11319
|
14358
|
|
127
|
8515
|
12172
|
9498
|
9825
|
13591
|
10480
|
11790
|
14956
|
key word:
Stud anchor chain R3 R3S R4
